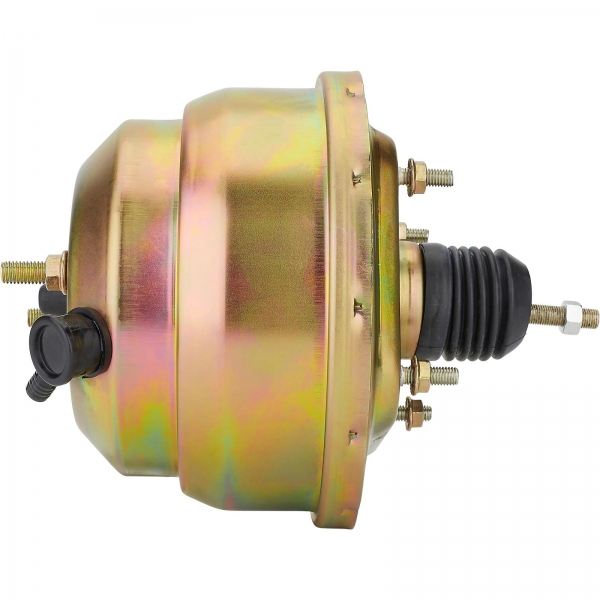

booster
Learn more about the proper uses of residual valves by reading our tech article. Brake System Selection.
Notes
Length from mount face to M.C. mount face is 5-1/4". Pushrod extends 4" from mount face and has 3/8"-24 threads. Mount bolts are 5/16"-20 x 7/8".
Installation Note: Before installing the master cylinder onto the booster, you may need to make an adjustment. The pushrod on the brake booster should protrude 1/16" from the face of the booster to insure proper engagement with the master cylinder.
Specs
8" O.D.
5-1/8" main body length
10-1/2" overall length
Back of the booster to the end of the threaded plunger rod is 4-1/8"
Firewall mounting studs are ¾" long at 3-3/8" center-to-center
Front master cylinder studs are 1-1/8" long at 3-3/8" center to center
