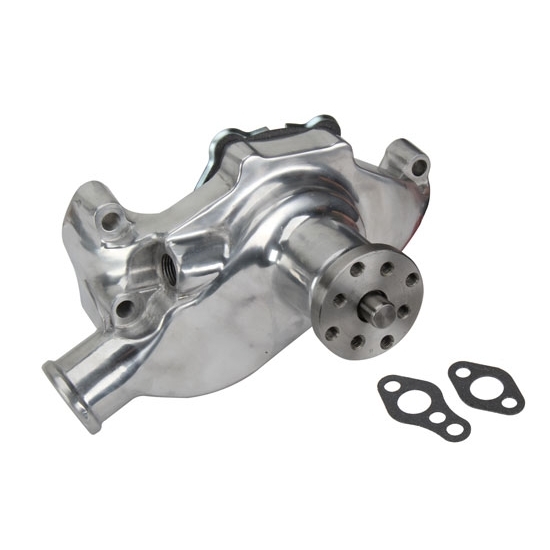

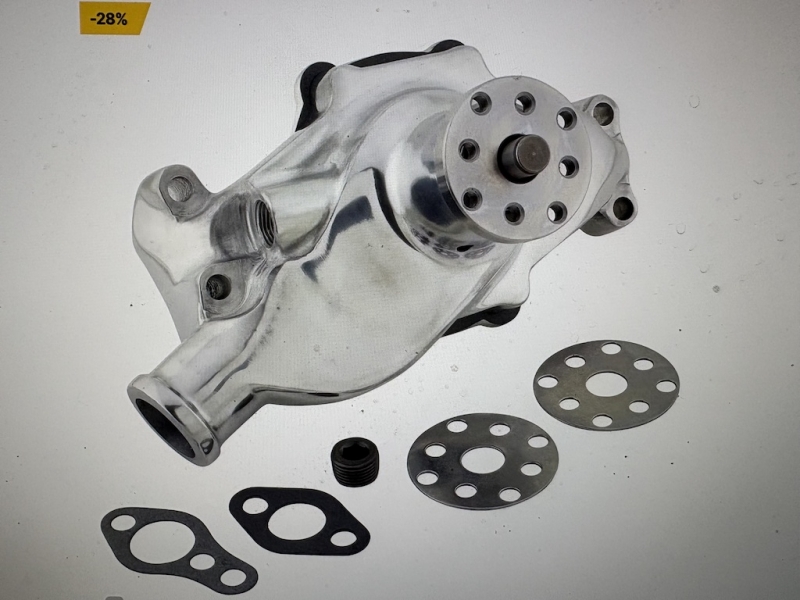

water pump
Water Pump Type: Mechanical
Water Pump Style: Short
Rotation: Clockwise/Standard
Pump Flow: Standard
Housing Material: Aluminum
Housing Finish: Polished
Housing Color: Natural
Block to Hub Distance: 6.13 Inch
Heater Inlet Size: 1/2" NPT
Hose ID: 1.75"
Shaft Length: 0.53"
Pilot Shaft Diameter: 0.63 Inch
Gasket(s) Included: Yes
Hardware Included: No
Weight: 5.65 lbs.
MFG. Part #: 91015545
Sold in Quantity: Each
Notes: Clearance from back of pump to engine block mount is .88"
Info
Speedway Short Aluminum water pumps flow 35 gallons per minute at 4,000 RPM, with minimal cavitation and proportionally increased flow rates at 5,000 RPM and above. Equalized water flow distribution and pressure-balanced water passages minimize internal engine hot-spots making these pumps an excellent alternative for not only light duty racing, but also marine, trucks, towing, and motorhome applications. Cruisers and hot rodders will appreciate the improved cooling at low speeds.
"Short" style pumps came on all factory small block V8s from 1955 to 1968. However, this pump will fit all S/B Chevys up to 1985.
Learn how to choose the correct water pump for your application by reading our tech article. SBC - Short vs Long Water Pump.
